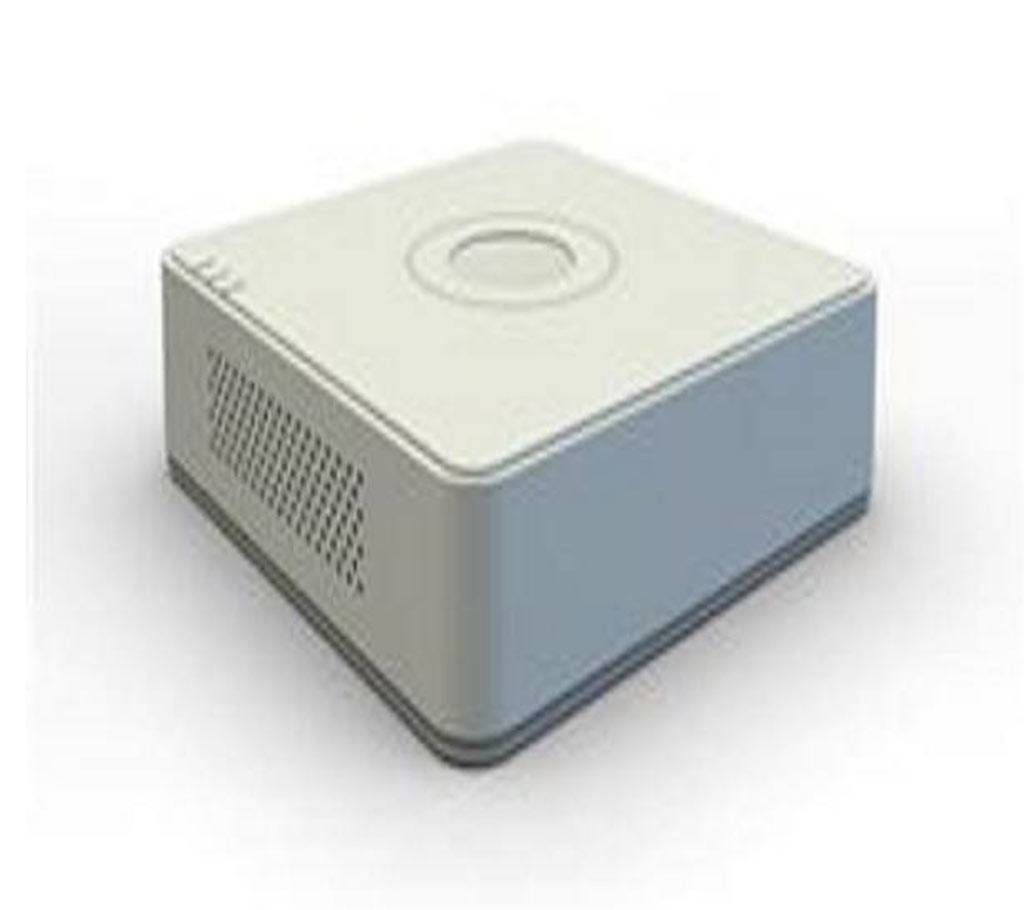

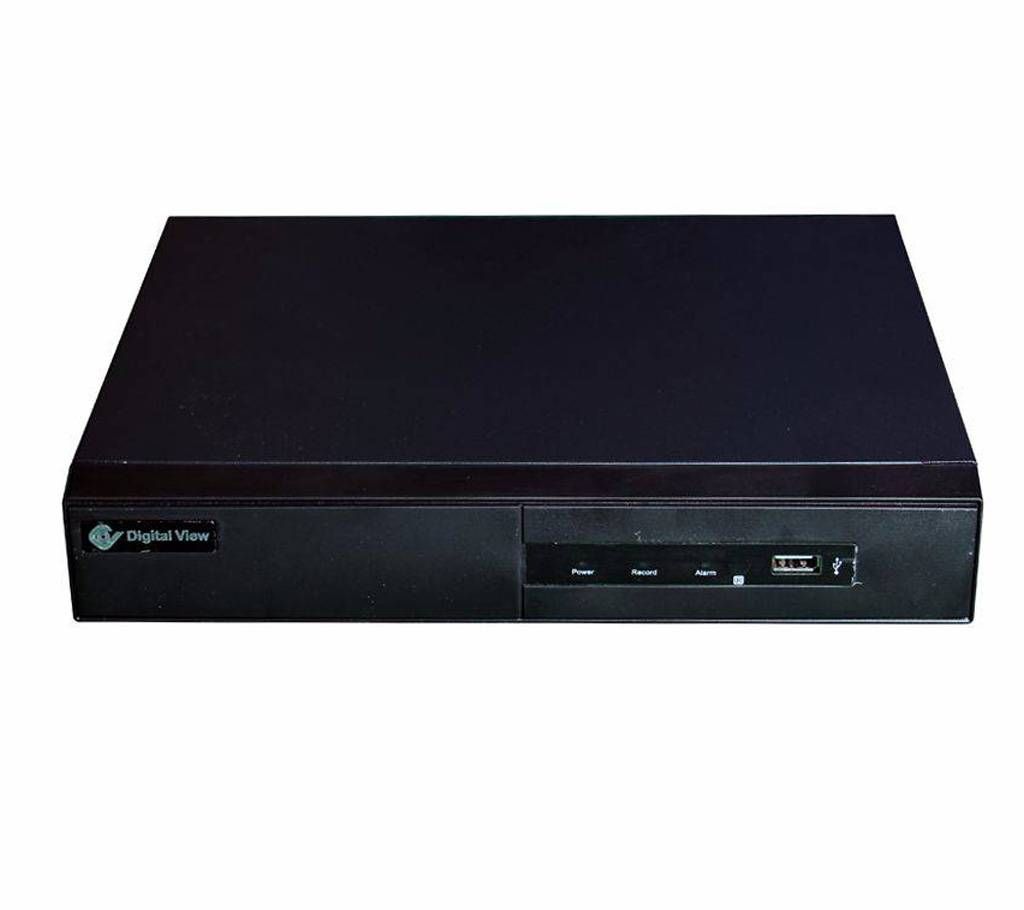

Turbo HD DVR

H.264 /H.264+& Dual-stream video compression

Support both HD-TVI /analog and AHD cameras with adaptive access

Full channel recording at up to 1080P lite resolution

HDMI and VGA output at up to 1920×1080P resolution

Long transmission distance over coax cable

Support 4/8/16-ch synchronous playback at 720P resolution

Video/Audio Input

Audio Input: 1-ch

Video Compression: H.264,H.264+

Analog and HD-TVI video input: 4-ch BNC interface (1.0Vp-p, 75 Ω)

Supported camera types: Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,

Support AHD input: 720P/25Hz, 720P/30Hz,

support CVBS input

Video Input Interface: BNC (1.0 Vp-p, 75Ω)

Audio Compression: G.711u

Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output

HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution: When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;

When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF

Frame Rate: Main stream:

When 1080p Lite mode not enabled:

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Video Bit Rate: 32 Kbps ~ 4 Mbps

Stream Type: Video/Video&Audio

Audio Output: 1-ch RCA(Linear, 1kΩ)

Audio Bit Rate: 64kbps

Dual Stream: Support

Playback Resolution: 1080p lite/720p/WD1/4CIF/VGA/CIF

Synchronous Playback: 4-ch

Network management

Remote connections: 32

Network protocols: TCP/IP, PPPoE, DHCP, Hik
